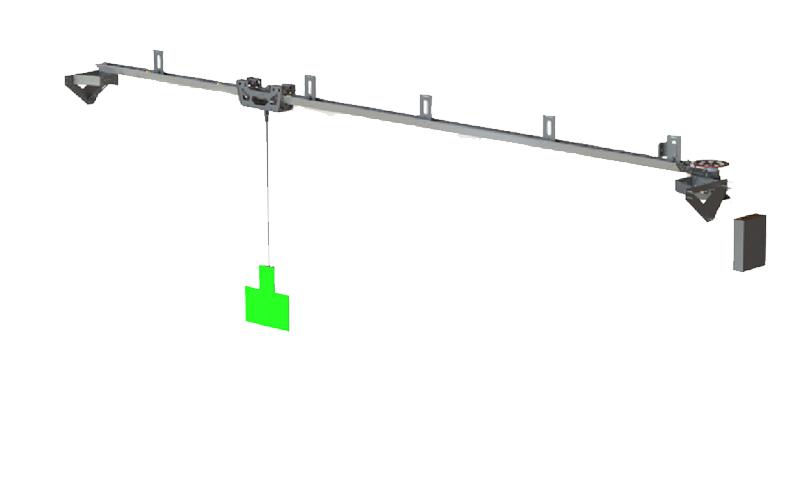

PUMA 90 is a cable based, single rail system to move target shield across the shooting gallery.

Provided software allows to add/modify intermediate stops of a target shield, waiting time and movement speed.

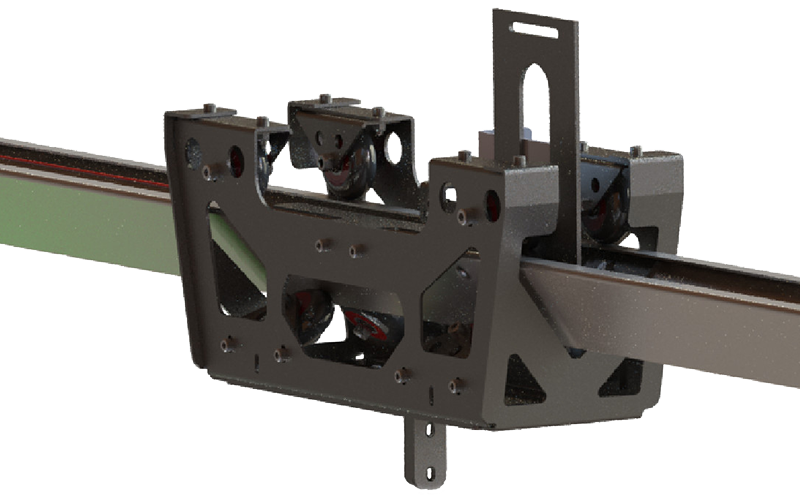

Moving cart can carry a single target shield or a dummy.

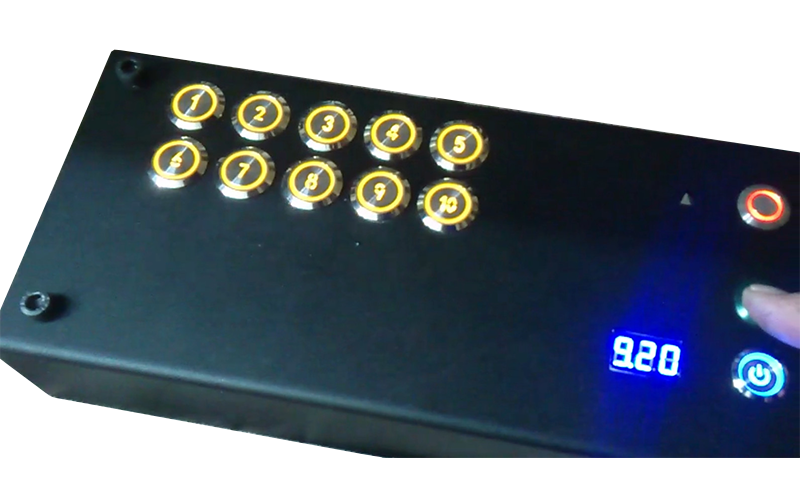

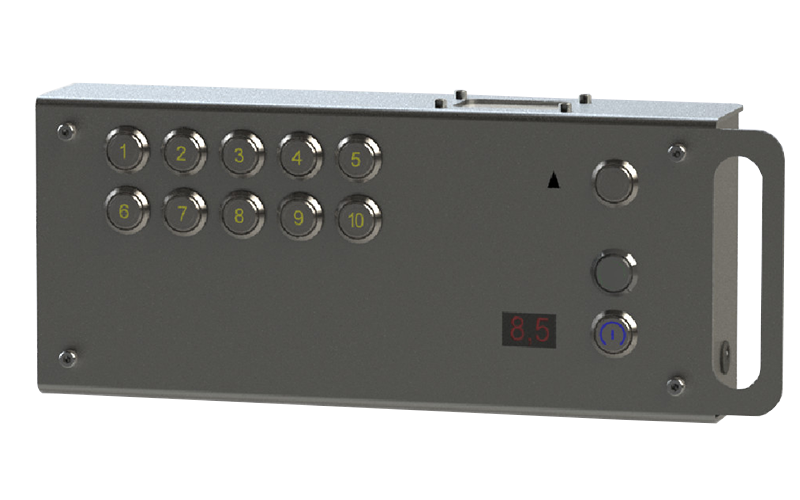

Various shooting exercises can be uploaded via USB to the remote control for the system.

Acceleration and breaking can be configured to be very rapid, due to powerfull engine and automatic disc breaks.

Built-in features

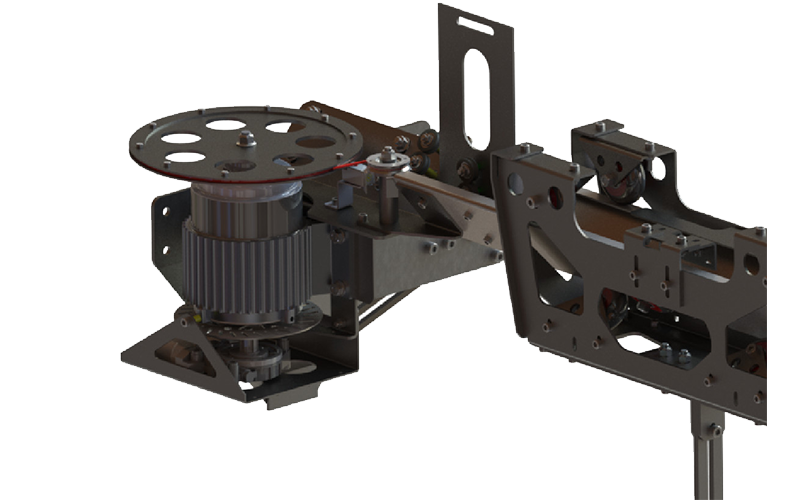

  • Powerfull 500wt BLDC engine with a dedicated controller for the great dynamics.
  • System is made out of extra durable materials, allowing to move up to 10kg target dummy.
  • Full control over the movement of a cart. Speed, acceleration, breaks, waiting time, intermediate stops - everything can be adjusted for a specific exercise.
  • Automatic adjustment of cable tension.
  • Equipment comes in pre-assembled blocks which can be put together without special expertise.

    • Pricing

    Pricing varies depending on quantity, features and 3rd party suppliers of various components.

    Please do not hesitate to get in touch with us via phone or email for an enquiry about this model.

    View production cycle

    For orders of any size.

    After hardware/software design modifications are viewed and approved by the client:

    - We placing orders for metal works and electronical equipment.

    - Metal works are done localy and take roughly 10-14 days.

    - Shipment of electronical equipment from abroad is from 3 to 5 weeks.

    - Assembly of components into a final device is normally done within 3-5 working days.

    - Field testing and packaging for delivery to a client is from 2 to 3 days.

    Technical details

    Cart velocity: up to 6 m/sec

    Power supply: 24/48v 500wt

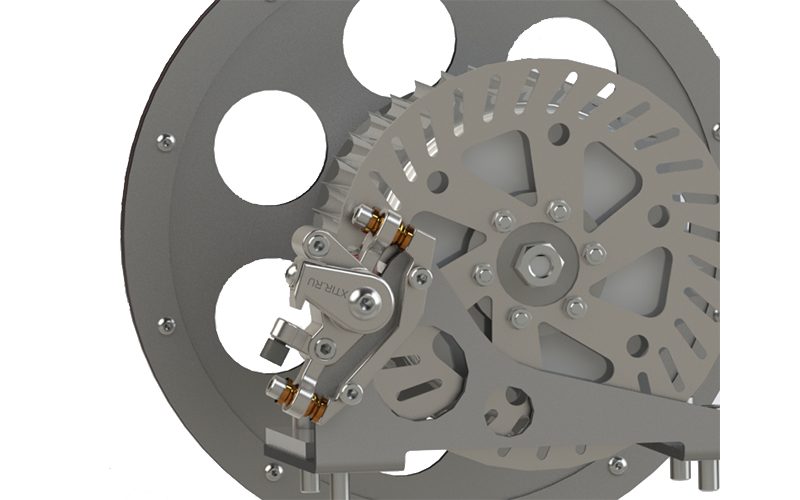

    Mechanical disk breaks

    3mm main cable

    Features can be modified upon request

    Packaging of one device

    Hoist and a cart: 120sm x 120sm х 80 sm
