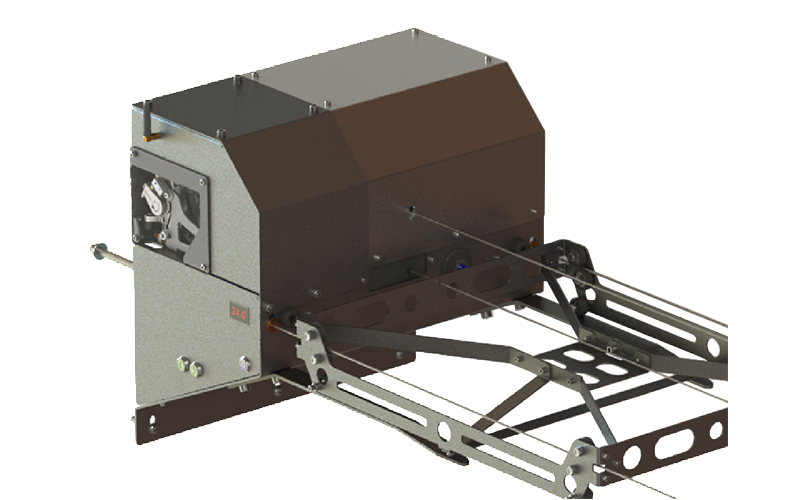

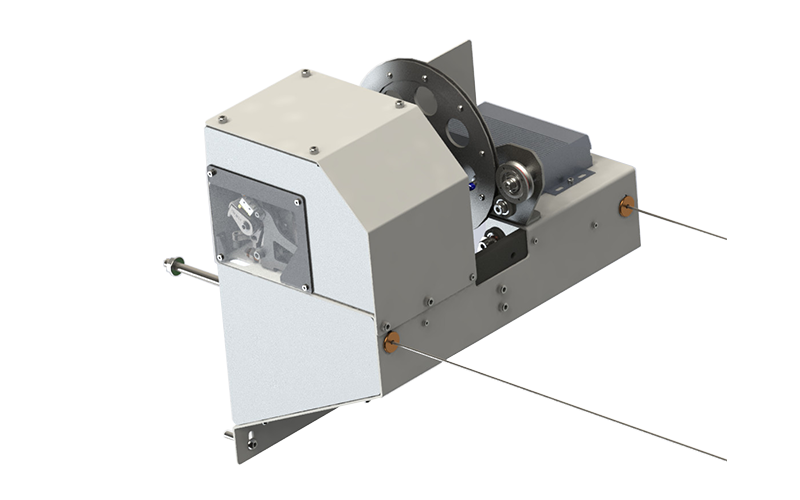

Seal fastened, cord based target system: PUMA TP2

PUMA TP2 is a cable based system which can be fastened to a sealing or a wall.

This model is designed to move the target shield up to 40 meters away at a rate of 10m/sec.

Additionally, this model includes disc brakes, resulting in a notable increase in acceleration and breaks.

Shooting exsercises are configured on a computer and can then be uploaded to PUMA TP2 via USB port.

For shipment, PUMA TP2 comes in pre-assembled blocks which can be put together without special expertise.

Built-in features

Adjustable height of a target shield.

Power supply for Puma TP2 is low voltage making it a less of a threat in case of electric failures.

Whole system can be controlled from a control panel or a remote controller.

Optional

Puma TP2 can be equipped with:

Electronic target with 0.3 - 1 millimeter accuracy and WiFi transfer of results to remote screens.

Pricing varies depending on quantity, features and 3rd party suppliers of various components.

Please do not hesitate to get in touch with us via phone or email for an enquiry about this model.

View production cycle

After hardware/software design modifications are viewed and approved by the client:

- We placing orders for metal works and electronical equipment.

- Metal works are done localy and take roughly 10-14 days.

- Shipment of electronical equipment from abroad is from 3 to 5 weeks.

- Assembly of components into a final device is normally done within 3-5 working days.

- Field testing and packaging for delivery to a client is from 2 to 3 days.

Cart velocity: up to 10 m/sec

Power supply: 24v 250w / 220v AC

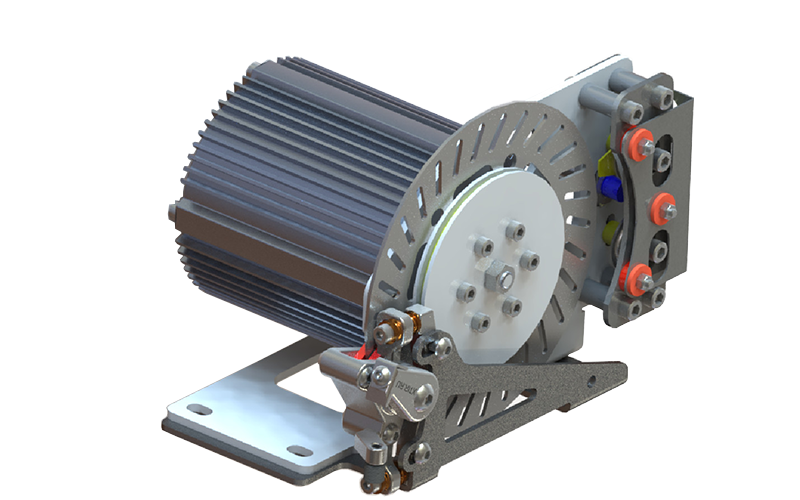

BLDC engine with mechanical disc brakes.

Weight of a hoist: less than 20 kg

Weight of a cart: less than 1.5 kg

Cord diameter: 3mm

Hoist and a cart: 120sm x 120sm х 80 sm
